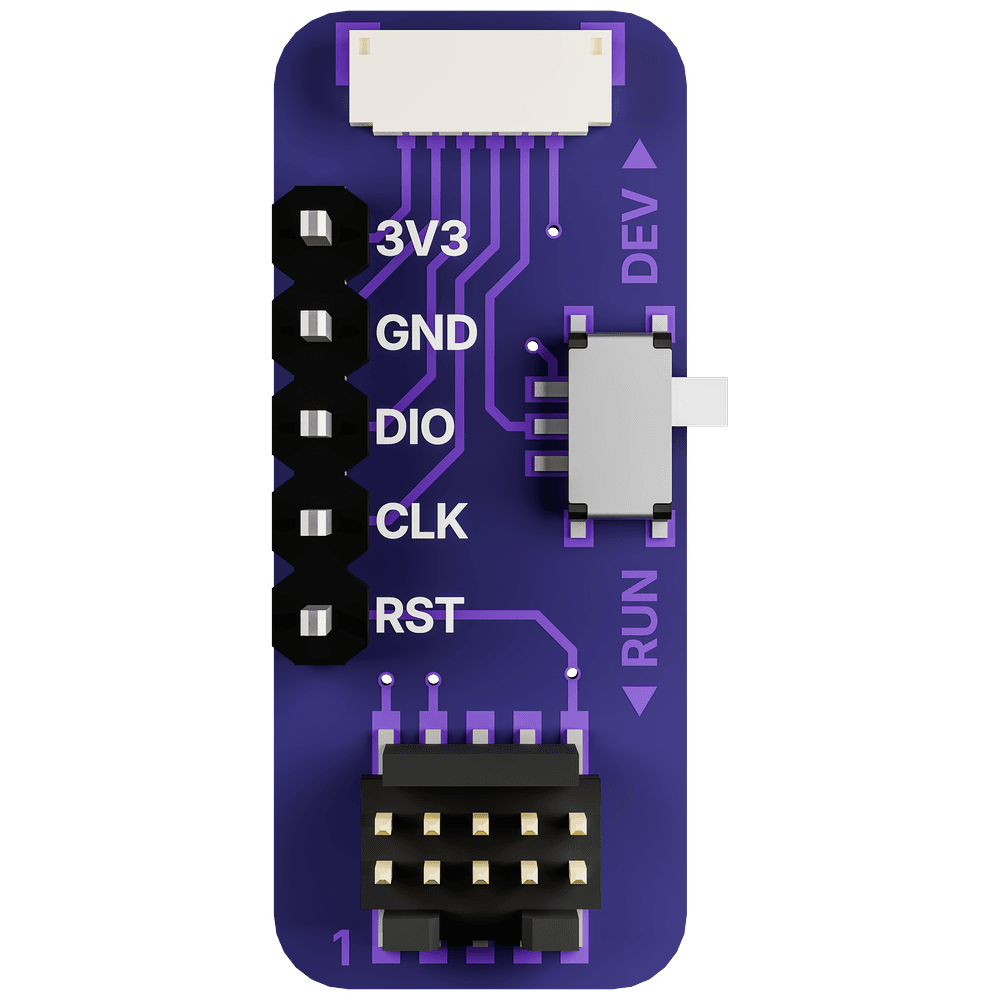

Neuro N6 Debug Adapter

SWD debug adapter with BOOT1 switch, built for the Neuro N6.

A debug adapter designed specifically for the Neuro N6. Ships with a cable that connects straight to the Neuro N6 and breaks SWD out to a 1.27 mm 10-pin Cortex debug header and a 2.54 mm pin header row (3V3, GND, DIO, CLK, RST), so you can plug in an ST-LINK, J-Link or any other SWD probe. An on-board BOOT1 switch puts the STM32N6 into DEV mode for flashing and debugging, or RUN mode to boot from flash.

• Built specifically for the Neuro N6
• Cable to the Neuro N6 included
• 1.27 mm 10-pin Cortex debug header
• 2.54 mm pin header: 3V3, GND, DIO, CLK, RST
• BOOT1 switch for the STM32N6: DEV on, RUN off
