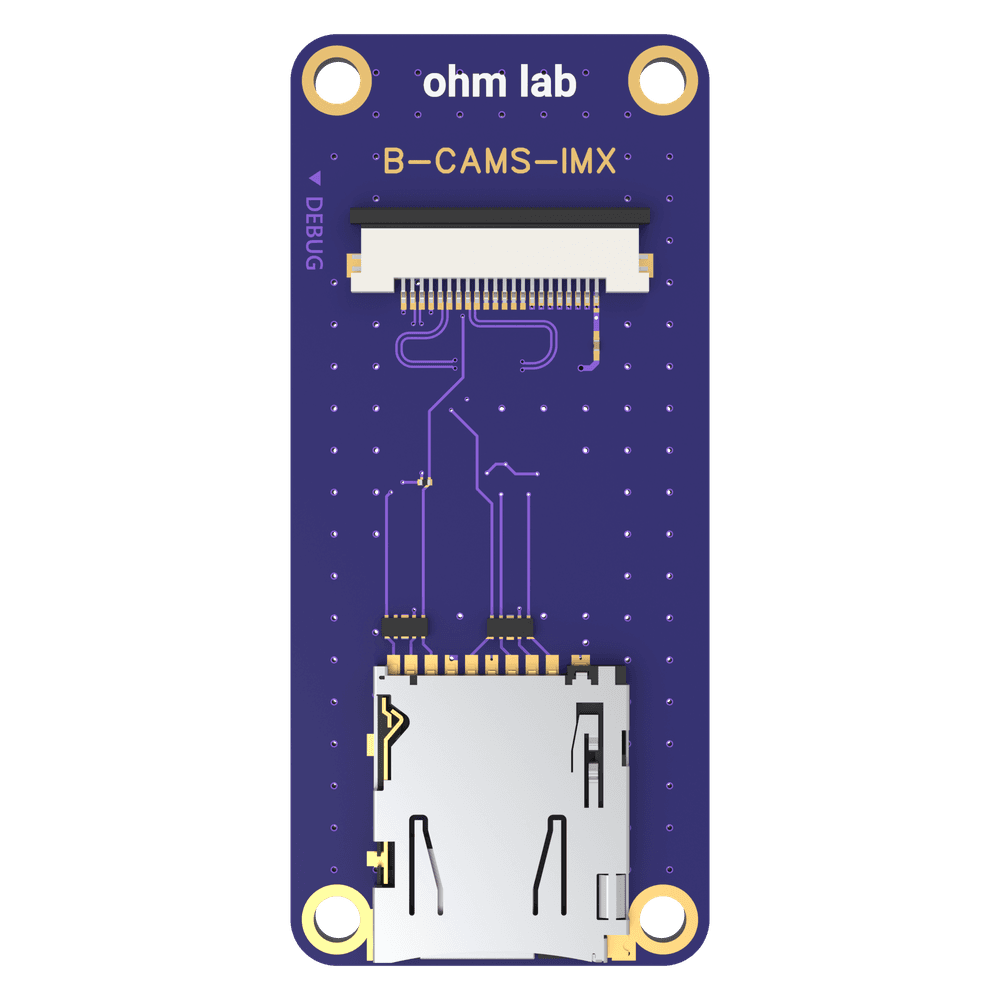

B-CAMS-IMX Adapter

Connects ST's B-CAMS-IMX camera module to the Neuro N6.

An adapter that connects ST's B-CAMS-IMX camera module to the Neuro N6. The camera's flex cable plugs into a 22-pin 0.5 mm FPC connector with a flip-lock actuator, and the board adds a microSD card slot. Connects to the Neuro N6 Mezzanine Connector and shares the Adafruit Feather footprint, with four mounting holes.

Coming soon

Connects ST's B-CAMS-IMX camera module
22-pin 0.5 mm FPC connector with flip-lock actuator
microSD card slot
Connects to the Neuro N6 Mezzanine Connector
Adafruit Feather footprint with four mounting holes

Specifications

Compatibility: Neuro N6
Camera: ST B-CAMS-IMX (connects via flex cable)
Camera connector: 22-pin 0.5 mm FPC, flip-lock (Molex 54548-2272)
Storage: microSD card slot
Dimensions: 50.8 × 22.86 mm
Mounting: Four holes, Adafruit Feather pattern
